Pneumatic Air Ejector

Pneumatic Air Ejector


Regular price $480.00
Regular price Sale price $480.00
Sale Sold out
Shipping calculated at checkout.

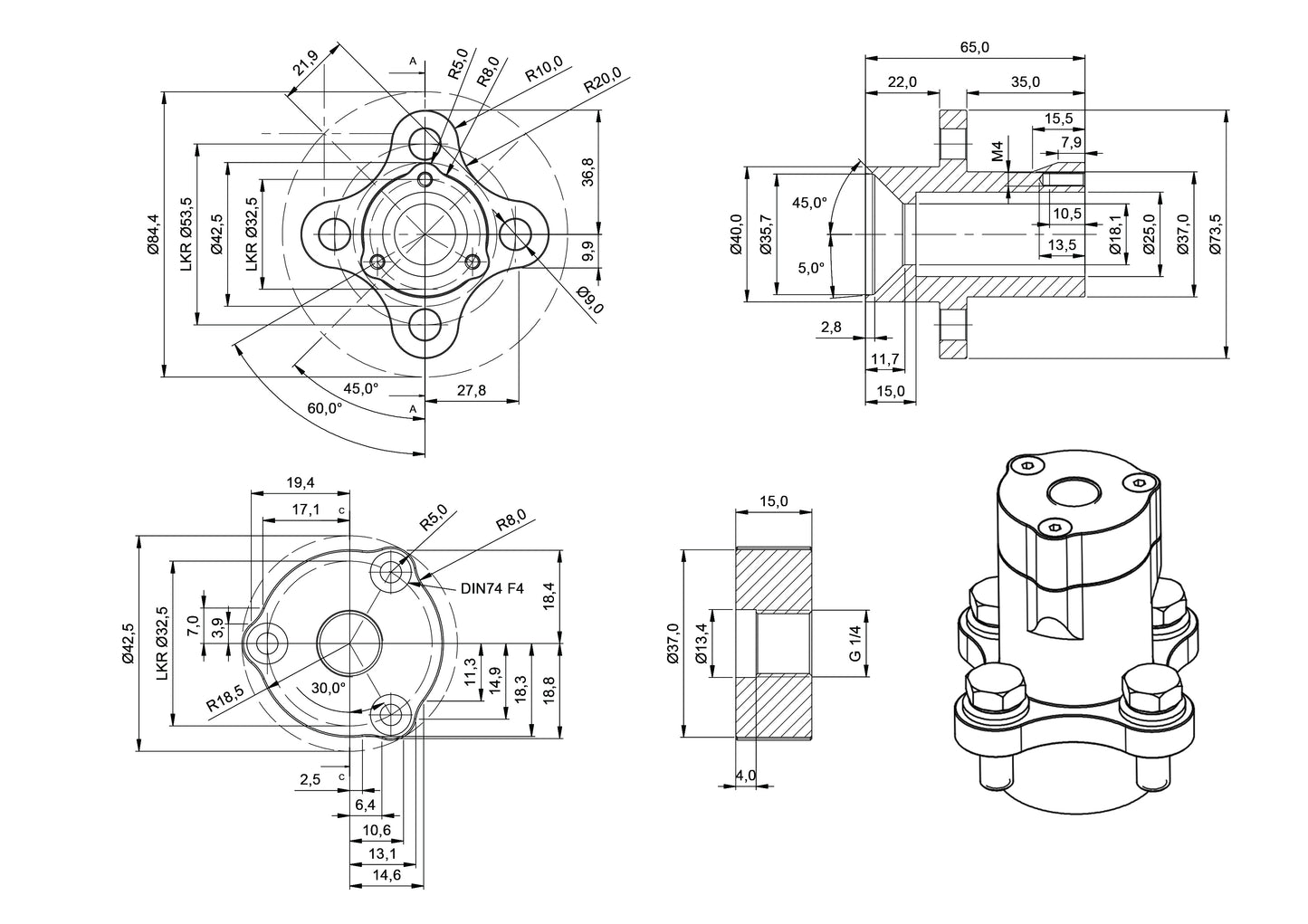

This product is for removing a plastic part that is difficult to grasp or pull out of a mold shell, such as a flat lid. The Pneumatic Ejector can be installed to push out the part from the mold cavity. By connecting to external compressed air (not form the machine arm) the spring-loaded ejector pin is extended by 35mm, lifting the molded plastic part out of the shell. The wall thickness of the molded plastic parts, material, and demolding temperature influence the functionality. After separating the compressed air, the cylinder automatically retracts again.

Spacer is needed with this product.
