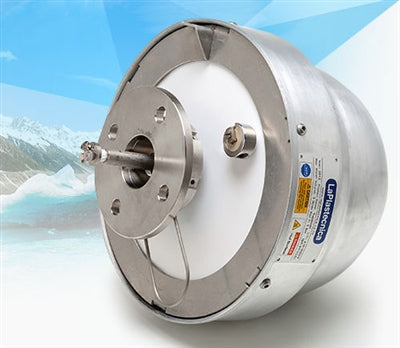

Supacool - KC401000

Supacool is an internal water cooling device designed to bolt onto the outside of the mold and operate through the vent holes. A compressed air line activates an injector that delivers a fine water mist inside the part during the cooling process. This contacts the plastic wall causing rapid and efficient cooling.

As the mist vaporizes to steam, large amounts of heat energy are absorbed dramatically reducing the inside temperature and the subsequent cooling times normally required. Excess steam is then vented back through the unit. This incredibly valuable accessory reduces warping and cycle times significantly.

Best of all, Supacool works with all your existing molds bolting easily onto the outside of the mold over an existing vent hole.

Benefits

• Reduces warping and cycle times
• Increase production
• Higher quality parts and uniformity
• Can be used with existing systems

Mounting Requirements

The Supacool unit is easily bolted to the outside of the mold and fits inside a tube 280mm (11”) in diameter and 280mm (11”) long.

Depending on the size and shape of the mold, a solid vent tube extension 44.5mm (1 3/4”) may also be required. Otherwise a standard 25mm (1”) Smartvent is sufficient. Please note if Supacool is to be used against the line of draw a quick release procedure should be incorporated to facilitate mold servicing.
